PRODUCT PARAMETERS

Product Type: Mining Tricone Bit

Body Material: 4145H high-strength torsion-resistant alloy steel body (adapted to high-load, impact-resistant conditions of mining hard formations)

Tricone Tooth Material: YG13C impact-resistant cemented carbide (features high wear resistance and anti-chipping properties, matched to hard rock cutting needs in mining)

Outer Diameter Specifications: Common sizes 9-7/8″ (250.8mm), 12-1/4″ (311.15mm), 14-3/4″ (374.65mm) (customizable for mining-adaptive sizes)

Applicable Formation: Medium-hard to ultra-hard rock formations (granite, quartzite, iron ore layers, mine fracture zone formations)

Tricone Structure: Reinforced three-roller rolling cutting structure (equipped with self-cleaning chip removal grooves to improve high chip removal efficiency in mining)

Nozzle Configuration: Large-flow wear-resistant nozzles (matched to high-displacement drilling fluid in mining, enabling efficient cooling of tricone teeth and cuttings discharge)

Connection Thread: API standard mining drill pipe thread (e.g., 4-1/2″ REG, compatible with mining rig tool strings)

Applicable Working Conditions: Mine roadway drilling, mineral resource exploration drilling, mine slope support drilling

Compliance Standard: Conforms to API 7-1 drilling bit industry standard and mining drill tool safety technical specifications

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

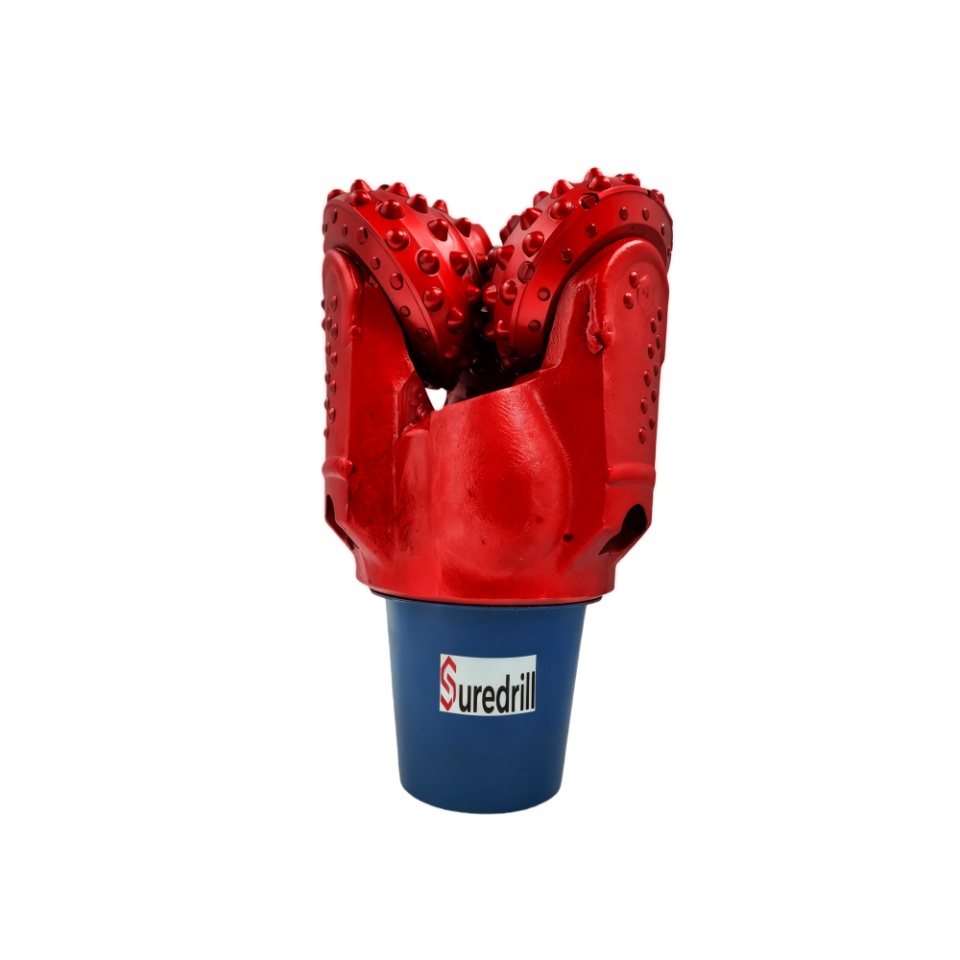

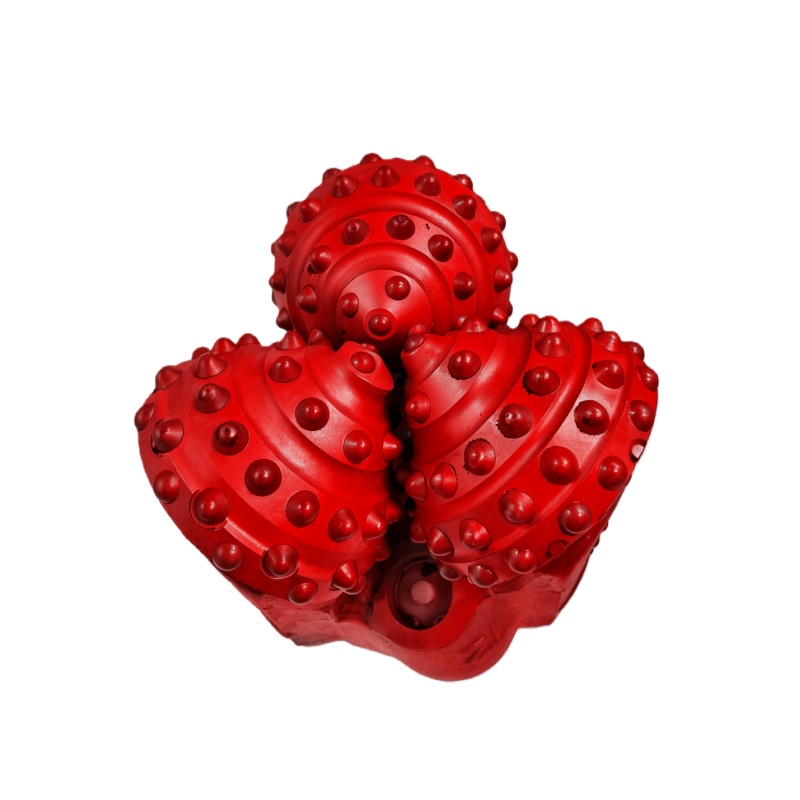

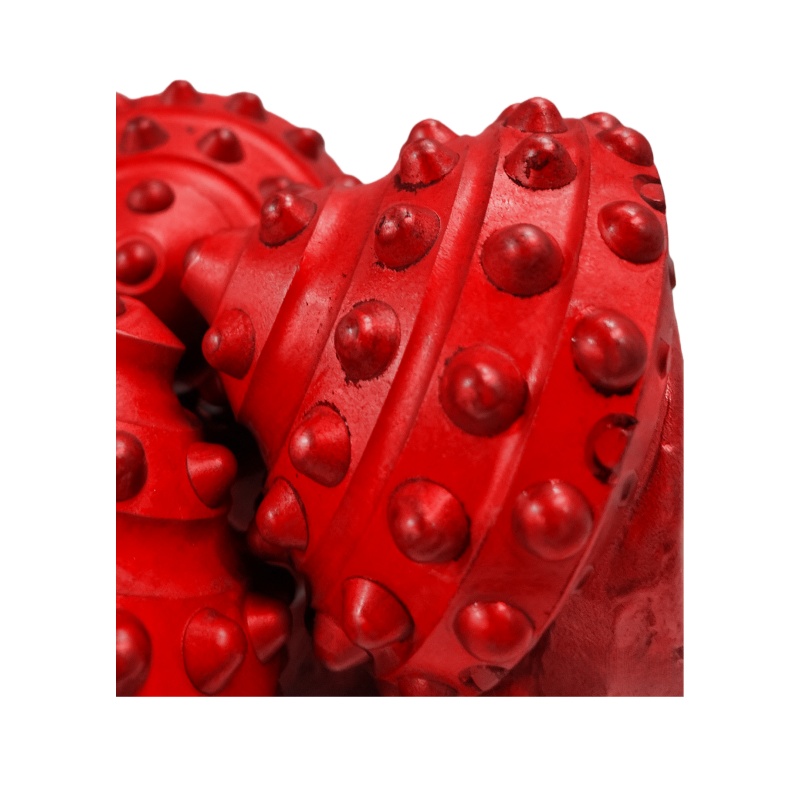

Mining Tricone Bit

1. Material

Tooth types:

Steel Tooth – for soft to medium formations (e.g., sandstone, shale)

TCI (Tungsten Carbide Insert) Tooth – for hard formations (e.g., limestone, basalt)

Body: Wear-resistant alloy steel, surface hardened for durability.

2. Application
Used in mining exploration, open-pit blast holes, anchor holes, and explosive charge holes.
Advantages: Cost-effective, versatile, suitable for both air and mud drilling conditions.

3. Specifications
Common diameters: φ76mm, φ89mm, φ105mm, φ127mm, φ133mm, φ152mm, φ171mm, φ190mm
API Connecting thread: 2 3/8″, 2 7/8″, 3 1/2“

4. Example Models

IADC 216 – Soft formation, steel tooth

IADC 437 – Medium-hard formation, steel tooth

IADC 517 / 637 – Hard formation, TCI tooth

FAQs

1.What types of products can we offer?

As a leading drill bit manufacturer, we specialize in six premium product lines tailored to diverse industrial needs: Tricone Bits (ideal for high-torque, multi-layer formation drilling), PDC Bits (engineered for efficient, long-lasting performance in soft-to-medium formations), Reamers (precision tools for borehole enlargement and stabilization), Stabilizers (critical for maintaining borehole trajectory and drill string stability), Drill Rods (high-strength, corrosion-resistant components for power transmission in drilling operations), and Picks (wear-resistant cutting tools optimized for mining and excavation applications). Each product is crafted with advanced materials and engineering to deliver exceptional durability and operational efficiency.

2.What logistics do we ship through?

We partner with global, industry-leading logistics providers (including specialized freight carriers for heavy industrial equipment) to ensure reliable, timely delivery across markets. Our shipping network covers air, sea, and land freight—with dedicated handling protocols for oversized/heavy drilling tools—to support both bulk orders (e.g., containerized shipments for mining projects) and urgent, small-batch deliveries. We also offer end-to-end supply chain visibility, customs clearance support, and tailored logistics solutions to align with clients’ project timelines and regional operational requirements.

3.What are the technical requirements for your products?

Our products adhere to stringent international standards (e.g., API, ISO) and are engineered to meet application-specific technical parameters:

Drill Rods: Tensile strength (1200–1500 MPa), thread integrity (conforming to API 7-1 standards), and corrosion resistance (passivated or coated for harsh geological/water well environments).Custom technical specifications can be developed in collaboration with our R&D and engineering teams to address unique project challenges.

Tricone/PDC Bits: Hardness ratings (55–65 HRC for cutting structures), torque resistance (up to 15,000 ft-lbs), and temperature tolerance (up to 300°C for downhole stability).

Reamers/Stabilizers: Diameter precision (±0.05mm), material grade (high-alloy steel or tungsten carbide), and load capacity (up to 200 tons for heavy-duty mining applications).

4.What is our ordering process?

Our streamlined, client-centric ordering process ensures clarity and efficiency:

Logistics & Delivery: Post-inspection, products are packaged per shipping standards; clients receive tracking details, and our team coordinates delivery to the designated location (with post-delivery technical support available upon request).

Consultation & Specification: Clients share project details (e.g., formation type, application, quantity), and our technical team recommends optimal product configurations.

Quotation & Confirmation: A detailed, customized quotation (including pricing, lead times, and technical documentation) is provided; clients confirm the order via formal purchase order.

Production & Quality Assurance: Manufacturing commences with real-time progress updates; all units undergo multi-stage testing (hardness, dimensional accuracy, performance simulation) to meet our quality benchmarks.
