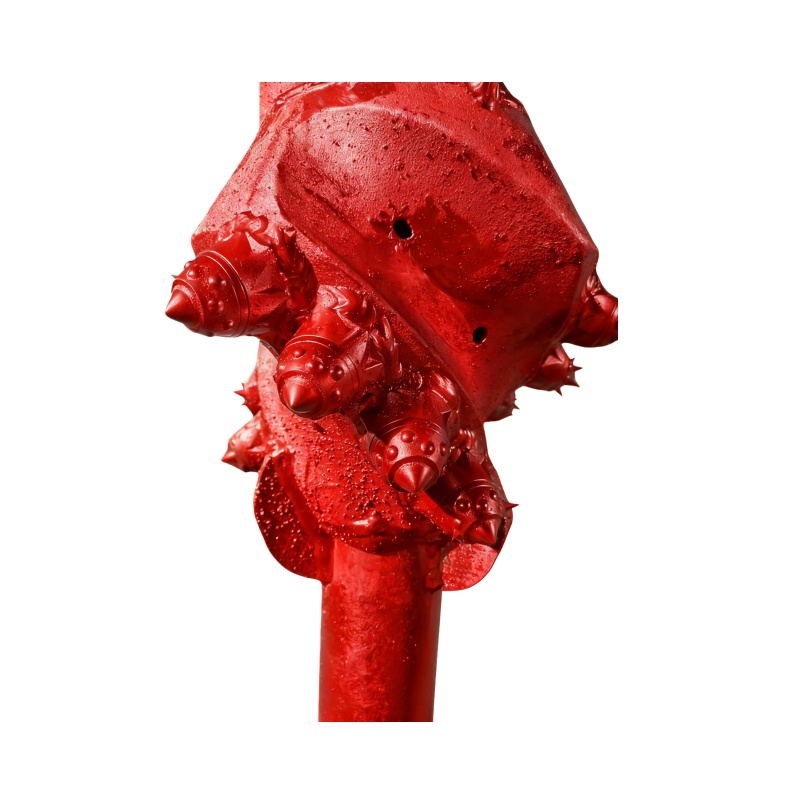

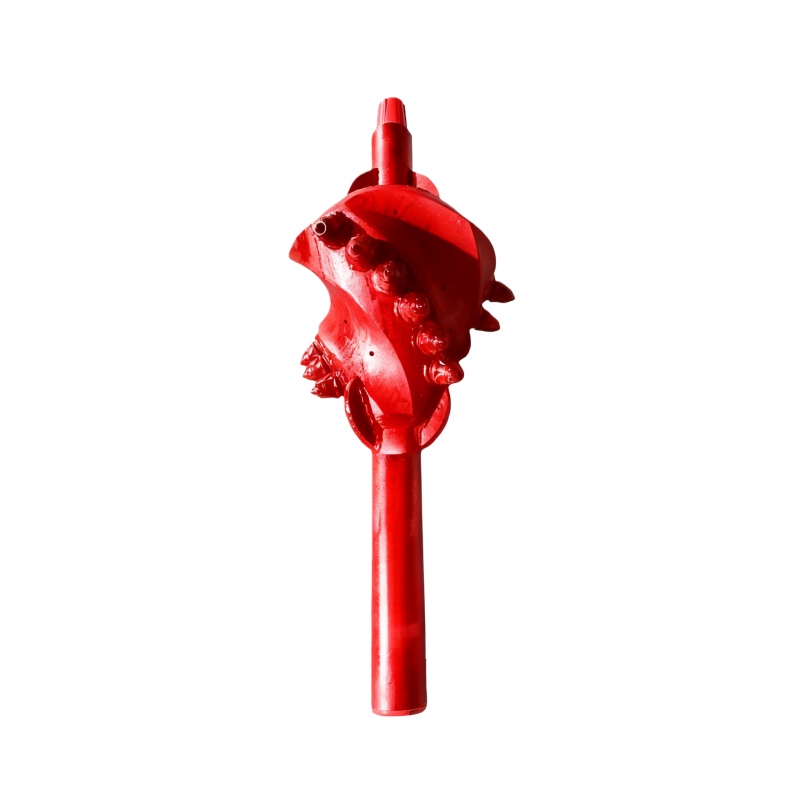

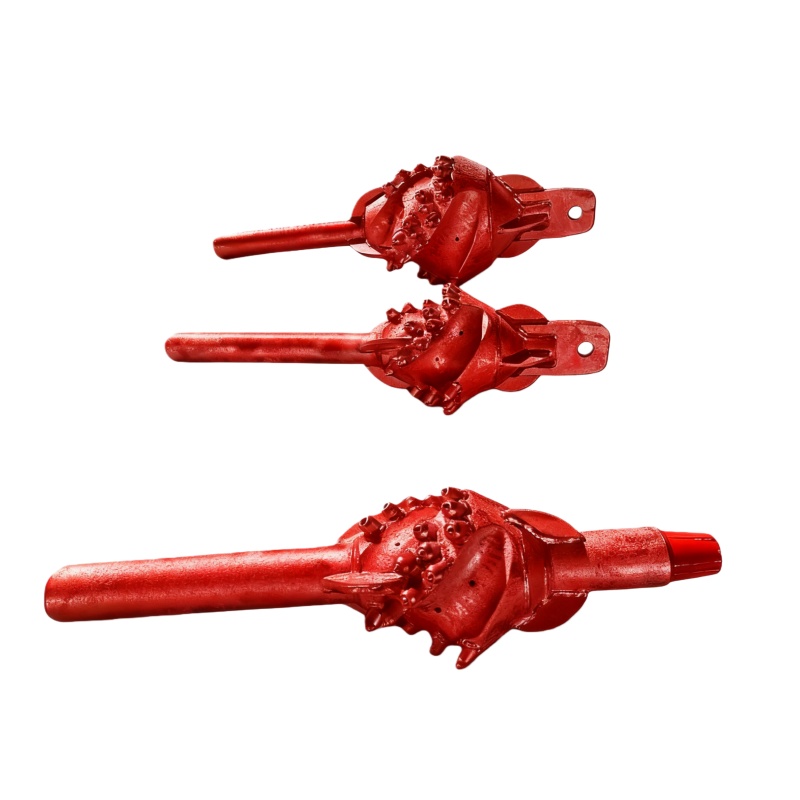

Flow-through Reamer – SUREDRILL – The Hard Rock Drilling Expert

PRODUCT PARAMETERS

Product Type: Flow-through Drilling Reamer

Body Material: 4145H high-strength torsion-resistant alloy steel (adapted to high-load working conditions of drilling reaming)

Outer Diameter Specifications: Matched to wellbore reaming needs, e.g., 8-1/2″ (215.9mm), 9-7/8″ (250.8mm), 12-1/4″ (311.15mm) (customizable reaming range)

Reaming Range: Capable of expanding wellbore diameter by 10%-25% (adapted to reaming needs of different drilling stages)

Blade Structure: 3-blade/4-blade spiral blades (equipped with central flow channel to ensure drilling fluid circulation and cuttings removal efficiency)

Cutter Tooth Material: Ultra-hard cemented carbide teeth (YG11C, with high wear resistance and impact resistance)

Wear-resistant Treatment: Tungsten carbide overlay reinforcement layer on blade surface (adapted to high-wear working conditions of hard formation reaming)

Compatible Drilling Tools: API standard drilling drill pipe/drill collar (compatible with mainstream drilling tool strings)

Applicable Working Conditions: Directional drilling wellbore reaming, wellbore trimming before casing running, complex formation wellbore shaping

Connection Thread: API standard drill pipe thread (e.g., 4-1/2″ REG, ensuring tool connection reliability)

Compliance Standard: Conforms to API 7-1 drilling tool industry standard and drilling reamer tool technical specifications

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

1. Material & Structure

Body: Solid alloy steel body, quenched and hardfaced for wear resistance.

Structure feature: Central fluid channel design allows drilling fluid or air to flow through easily for cooling and cuttings removal.

Cutting parts: Can use welded teeth, TCI inserts, or PDC cutters, or even a hybrid tricone/PDC combination.

Connecting thread: Upper and lower API threaded joints, installed within the drill string.

2. Application
Used during drilling to maintain borehole gauge, clean the hole, and prevent wall contraction.
Commonly applied in oil, geothermal, and engineering drilling as a stabilizing reaming tool.
Features: Compact structure, smooth chip evacuation, and dual reaming-stabilizing functions.

3. Specifications

Diameter range: φ120mm–φ444.5mm (4 3/4″–17 1/2″)

Flow design: Available in straight-through or deflected flow types.

Can be equipped with PDC cutters or hard-welded teeth.

4. Example Models

Model	Diameter	Structure Type	Feature
FR-171	171 mm	3-blade flow-through	Stabilizing and guiding
FR-215	215 mm	4-blade PDC type	Strong cleaning, long life
FR-311	311 mm	Heavy-duty flow-through	Geothermal / hard formations
FR-444	444 mm	Full-flow type	Large-borehole operations

FAQs

1.What types of products can we offer?

As a leading drill bit manufacturer, we specialize in six premium product lines tailored to diverse industrial needs: Tricone Bits (ideal for high-torque, multi-layer formation drilling), PDC Bits (engineered for efficient, long-lasting performance in soft-to-medium formations), Reamers (precision tools for borehole enlargement and stabilization), Stabilizers (critical for maintaining borehole trajectory and drill string stability), Drill Rods (high-strength, corrosion-resistant components for power transmission in drilling operations), and Picks (wear-resistant cutting tools optimized for mining and excavation applications). Each product is crafted with advanced materials and engineering to deliver exceptional durability and operational efficiency.

2.What logistics do we ship through?

We partner with global, industry-leading logistics providers (including specialized freight carriers for heavy industrial equipment) to ensure reliable, timely delivery across markets. Our shipping network covers air, sea, and land freight—with dedicated handling protocols for oversized/heavy drilling tools—to support both bulk orders (e.g., containerized shipments for mining projects) and urgent, small-batch deliveries. We also offer end-to-end supply chain visibility, customs clearance support, and tailored logistics solutions to align with clients’ project timelines and regional operational requirements.

3.What are the technical requirements for your products?

Our products adhere to stringent international standards (e.g., API, ISO) and are engineered to meet application-specific technical parameters:

Drill Rods: Tensile strength (1200–1500 MPa), thread integrity (conforming to API 7-1 standards), and corrosion resistance (passivated or coated for harsh geological/water well environments).Custom technical specifications can be developed in collaboration with our R&D and engineering teams to address unique project challenges.

Tricone/PDC Bits: Hardness ratings (55–65 HRC for cutting structures), torque resistance (up to 15,000 ft-lbs), and temperature tolerance (up to 300°C for downhole stability).

Reamers/Stabilizers: Diameter precision (±0.05mm), material grade (high-alloy steel or tungsten carbide), and load capacity (up to 200 tons for heavy-duty mining applications).

4.What is our ordering process?

Our streamlined, client-centric ordering process ensures clarity and efficiency:

Logistics & Delivery: Post-inspection, products are packaged per shipping standards; clients receive tracking details, and our team coordinates delivery to the designated location (with post-delivery technical support available upon request).

Consultation & Specification: Clients share project details (e.g., formation type, application, quantity), and our technical team recommends optimal product configurations.

Quotation & Confirmation: A detailed, customized quotation (including pricing, lead times, and technical documentation) is provided; clients confirm the order via formal purchase order.

Production & Quality Assurance: Manufacturing commences with real-time progress updates; all units undergo multi-stage testing (hardness, dimensional accuracy, performance simulation) to meet our quality benchmarks.
